Go Power Solar Panel: Product Guide

HOW SOLAR WORKS

Go Power! solar kits charge the RV’s battery bank to power lights, fans, and other DC appliances. Solar also extends battery life by ensuring a healthy charge level.





SOLAR FAQs

How does solar work with my RV?

Solar takes the sun’s energy and converts it into DC battery power to charge your RV batteries. It is a battery charger that works anytime the sun is out.



How long can I run my appliances or electronics on solar?

This all depends on how many amps your load consumes per hour and how large your battery bank is. Try using the Solar Sizing Calculator on the next page, which will recommend battery bank size for the loads you use.



What is the difference between DC and AC power?

DC (direct current) power is drawn from a battery and will run several types of 12-volt RV appliances, like lights and water pumps. AC (alternating current), which is drawn out of the wall at home, can be replicated in an RV by using an inverter to convert your 12-volt DC battery power into 120- volt AC household power. This is important if you wish to run AC-powered devices such as a TV, hair dryer, or coffee maker.



Can I run my TV, refrigerator, or water pump on solar?

Many refrigerators in RVs can run on DC propane and AC power. The solar panels will provide power to the batteries, which will allow you to run the fridge on DC power and propane. Solar will also charge the batteries so you can use your water pump. Many TVs run on 120-volt power, so you might require a small inverter to run a TV.



Do I need to install an inverter if I only want to charge my boat or RV battery with a solar panel?

No, you only require an inverter if you need to convert DC battery power to AC household power to run devices like TVs, tool chargers, and microwaves.



Will solar work in the winter in my state or province?

Solar will work anytime it is light out and sunlight is shining on the panel. However, if there is an accumulation of snow on the panel, it will not work.



WHAT IS A SOLAR KIT?

Go Power! kits contain a solar panel, solar controller, mounting hardware and cables, and are ideal for simply

charging your RV battery.





SINGLE-PANEL SOLAR KITS



OVERLANDER KIT

Our most popular kit, the Overlander now has 10 extra watts of power

to keep your batteries healthy and charged. Features a 25-year power- output warranty.

Watts	Amps
170	8.9
Controller
30 Amp PWM Solar Controller
Weight & Dimensions
26.4 lbs 56.1 x 26.3 x 1.58 inches





RETREAT KIT

Our most efficient charging kit, the Retreat is ideal for campers/rooftop where space is limited. Features a 25- year power output warranty.

Watts	Amps
100	5.4
Controller
30 Amp PWM Solar Controller
Weight & Dimensions
17.6 lb 47.09 x 21.46 x 1.38 inches



EXPANSION KITS

Add more power to the OVERLANDER and RETREAT kits. Expansion kits include solar panel, mounting hardware, and MC4 branch connectors. Features a 25-year power output warranty.

Expansion Kits	Amps	Watts	Weight	Dimensions
Overlander-E	8.9	170	26.4 lb	56.1 x 26.3 x 1.58 inches
Retreat-E	5.4	100	17.6 lb	47.09 x 21.46 x 1.38 inches



ECO SERIES KITS

Compact, roof-mounted kits. Ideal for trickle- charging in the off-season or for charging a smaller battery bank. 80W and 20W kits include digital controller, 25’ of cable, and all mounting hardware.

Eco Series	Amps	Watts	Controller	Weight	Dimensions
GP-ECO-80	4.6	80	10 Amp	13.2 lb	30.71 x 26.46 x 1.38 inches
GP-ECO-20	1.3	20	10 Amp	3.97lb	13.58 x 18.50 x 0.98 inches
GP-ECO-10	0.7	10	Not Required	1.7lb	13.19 x 9.25 x 0.98 inches





SOLAR FLEX KITS

Conforms to the RV rooftop and eliminates any need for custom mounts. Includes a digital solar controller and can be mounted with adhesive or screws for a secure install. Expand solar capabilities with an expansion kit.

Solar Flex	Amps	Watts	Controller	Weight	Dims
GP-FLEX-100	5.6	100	30 Amp	2.9lb	44.6 x 21.4 x 0.1 inches
GP-FLEX-50	2.8	50	10 Amp	1.6lb	42.1 x 11.3 x 0.1 inches
GP-FLEX-30	1.7	30	10 Amp	1.1lb	24.4 x 14.96 x 0.1 inches
GP-FLEX-100E	5.6	100	Not Required	2.9lb	44.6 x 21.4 x 0.1 inches
GP-FLEX-50E	2.8	50	Not Required	1.6lb	42.1 x 11.3 x 0.1 inches

*Expansion kits



PORTABLE SOLAR KITS

These kits are perfect as supplementary chargers or as an additional power source for any rooftop solar kit. Plug & Play connectivity ensures fast and easy set-up between the panels and the battery. Includes 12’ UV cables and a durable carrying case.

Portable Solar Kits	Amps	Watts	Controller
GP-PSK-120	6.7	120	10 Amp
GP-PSK-80	4.4	80	10 Amp

Portable Solar Kit	DIMS (Open)	DIMS (Closed)	Controller
GP-PSK-120	32.48 x 39.76 x 1.38 inches	32.48 x 19.88 x 2.76 inches	33lb
GP-PSK-80	21.65 x 39.76 x 1.18 inches	21.65 x 19.88 x 2.36 inches	19.8lb





Acessories
GP-PSK-X30	GP-PSK-7PIN
30' Extension Cable	Trailer Plug Adapter

The most efficient MPPT controller for RVs, the GP-MPPT-40 regulates and prevents the solar panel from overcharging batteries.

• Maximum Power Point Tracking (MPPT) charging
• 3 battery charging profiles
• Maximizes all power from your solar modules
• Stackable: add an additional controller for 80A capacity
• Easy-to-read backlit digital remote display
• 5-year warranty



PWM Solar Controllers

Regulates and prevents the solar panel from overcharging batteries with Pulse Width Modulated (PWM) charging.

GP-PWM-30		GP-PWM-10-FM		GP-PWM-10-USB
Controller		Controller		Controller
30 Amp PWM		10 Amp PWM		Compact 10 Amp PWM
Dimensions		Dimensions
4.25 x 7.48 x 1.38 inches		3.94 x 4.02 x 1.14 inches		3.94 x 4.02 x 1.14 inches



Features

• 3 battery charging profiles, 4-stage charging
• Maximum Power Boost tops up batteries at the end of daylight
• Easy-to-read, backlit digital display
• Built-in USB charge port
• Heavy-duty terminals
• Dual bank battery charging*
• ISW Inverter on/off control*
• 5-year warranty



MULTI-PANEL KITS

For those who need extra power, our multi-panel kits deliver large amounts of DC solar charging for power-hungry appliances.



ALL-ELECTRIC KITS

Eliminating the need for conventional battery charging, the solar all-electric kits are great for systems with all electric residential fridges.

• Our largest rigid-panel kits

• 40-amp MPPT solar controller(s)

• GP-CEP-25, 25’ MC4 cables, 1 red and 1 black

• Mounting hardware

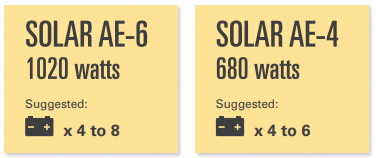

  All-Electric Kit	Panels	Watts	Amps	Controller
  SOLAR AE-6	6	1020	53.4	GP-MPPT-40 (X2)
  SOLAR AE-4	4	680	35.6	GP-MPPT-40





FLEX-500 KIT

These 500 and 200 watt kits with flexible solar modules provides extra power and installation versatility.

• 500 watts, 28 amps of solar power

• 40-amp MPPT solar controller

• GP-CEP-25, 25’ MC4 cables, 1 red and 1 black

Mounting hardware



Solar Flex	Panels	Watts	Amps	Controller
GP-FLEX-500	5	500	28	GP-MPPT-40
GP-FLEX-200	2	200	11.2	GP-PWM-30



COMPLETE SYSTEMS

Get freedom to use your AC and DC appliances anywhere with Go Power! complete solar and inverter kits. These kits all include a 30 amp PWM solar controller and an inverter remote and install kit.



• SOLAR EXTREME

WATTS	AMPS
510 (3x 170W)	26.7
INVERTER CHARGER
3000 watt pure sine wave inverter charger (with built-in 125 amp battery charger and 50 amp transfer switch)





• SOLAR ELITE

WATTS	AMPS
340 (2x 170W)	17.8
INVERTER CHARGER
2000 watt pure sine wave inverter charger (with built-in 100 amp battery charger and 50 amp transfer switch)



• WEEKENDER ISW

WATTS	AMPS
170	8.9
INVERTER / TRANSFER SWITCH
- 1500 watt industrial pure sine wave inverter - Prewired 30 amp transfer switch



INVERTER/CHARGER

A 3-in-1 system combining an inverter, battery charger, and automatic transfer switch. These combo units FIT are designed to save space and simplify installation. UL listed, the IC Series is available in 2000 and 3000 watt models, and comes with a 3-year warranty.



Inverter Charger	Watts	Surge (3ms)	Battery Charger	Transfer Switch	Weight
GP-IC-3000-12	3000	6000	125 amps	2x 50 amps	51.9 lbs
GP-IC-2000-12	2000	4000	100 amps	2x 50 amps	38.7 lbs



GP-ICR-50

• IC Series inverter charger remote

• Easy-to-read, 4-line digital display

• Non-volatile memory settings

• 50’ cable

• 3-year warranty

• Included in Inverter Charger package



INVERTERS

Premium mobile power in a sleek, lightweight profile. Bring reliable power on the road with the Go Power! Industrial Pure Sine Wave Inverters, available in 150-3000 watts. Provide peace of mind when powering electronics with a 2-year warranty. Also available in 24v.



Pure Sine Wave Inverters	Watts	Surge (3ms)	Outlets	Inverter Cable Kit	Remotes	Weight & Dims
GP-ISW-3000-12	3000	6000	Hard wire	Use GP-DC-KIT5	Use GP-ISW-R / GP-SWR-A	18.08 lbs 17.40” x 10.04” x 6.22”
GP-ISW-2000-12	2000	4000	2 GFCI	Use GP-DC-KIT4	Use GP-ISW-R / GP-SWR-A	11.55 lbs 17.45” x 9.76” x 3.27”
GP-ISW-1500-12	1500	3000	2 GFCI	Use GP-DC-KIT3	Use GP-ISW-R / GP-SWR-A	9.13 lbs; 16.59” x 9.76” x 3.27”
GP-ISW-1000-12	1000	2000	2 GFCI	Use GP-DC-KIT2	Use GP-ISW-R / GP-SWR-A	7.19 lbs; 14.65” x 7.87” x 3.27”
GP-ISW-700-12	700	1400	2 GFCI	Use GP-DC-KIT2	Use GP-ISW-R / GP-SWR-A	5.73 lbs; 13.00” x 7.87” x 3.27”
GP-SW-300-12	300	600	2 GFCI	Anderson Lug Terminals Included	Option for 2 wire switch	7.7 lbs 9.3” x 6.1” x 2.8”
GP-SW-150-12	150	300	2	12V Plug Included	Option for 2 wire switch	5.9 lbs 8” x 5.3” x 2.9”



Economical and reliable power solutions for running lights, appliances, and other resistive loads. The 12-volt Go Power! Modified Sine Wave Inverters range from 225 to 5000 watts and come with a 1-year warranty.



Modified Sine Wave Inverters	Watts	Surge (3ms)	Outlets	Inverter Cable Kit	Remotes	Weight & Dims
GP-5000HD	5000	10000	4	Use GP-DC-KIT5	Use GP-HD-R	15.65 lbs: 18.50” x 9.92” x 4.13”
GP-3000HD	3000	6000	4	Use s	Use GP-HD-R	10.54 lbs: 11.41” x 9.92” x 4.13”
GP-1750HD	1750	3500	3	Use GP-DC-KIT3	Use GP-HD-R	6.42 lbs: 8.07” x 8.86” x 3.50”
GP-1000HD	1000	2000	2	Use GP-DC-KIT2	Use GP-HD-R	3.11 lbs: 9.44” x 4.88” x 2.95”
GP-800HD	800	1600	2	Use GP-DC-KIT2	Use GP-HD-R	2.31 lbs; 7.48” x 4.88” x 2.95”
GP-400HD	400	800	2	Lighter Plug Included	N/A	1.54 lbs; 6.30” x 4.25” x 2.64”
GP-225HD	225	450	2	Lighter Plug Included	N/A	1.01 lbs; 5.27” x 3.86” x 2.05”





BATTERIES & POWER ACCESSORIES

Specifically designed for solar, the AGM deep-cycle batteries offer maintenance-free, sealed

construction and integrated carrying handles. UL listed, the battery is available in 6V and 12V models, and comes with a 2-year warranty.



GP-AGM-225-6V

• 6V, 225AH @ C20
• Float application: 6.8 - 6.9 V
• Cycle application: 7.2 - 7.4 V
• 67.3 lbs; 10.24” x 7.09” x 9.72”



GP-AGM-100

• 12V, 110AH @ C100 | 100AH @ C20
• Float application:13.5 - 13.8 V
• Cycle application: 14.4 - 15.0 V
• 67.5 lbs; 12.01” x 6.61” x 8.15”



RECOMMENDED KITS

Every RV (and Rver) is unique. Use the chart below to find out what solar and inverter kits will work best for an average RV in each class. Visit our website and use our calculator at gpelectric.com/calculator to design a custom Go Power! solution for your needs.



	CLASS A (GAS OR DIESEL)			FIFTH WHEEL / TOYHAULER			CLASS C
	1-3 DAYS AWAY	7+ DAYS AWAY		1-3 DAYS AWAY	7+ DAYS AWAY		1-3 DAYS AWAY	7+ DAYS AWAY
SOLAR	300+ watts	600+ watts		300+ watts	600+ watts		150+ watts	300+ watts
INVERTER	2000/3000 watt pure sine	2000/3000 watt pure sine		2000/3000 watt pure sine	2000/3000 watt pure sine		1500/2000 watt pure sine	1500/2000 watt pure sine
BATTERIES	x2 to 4	x4 to 6		x2 to 4	x2 to 6		x2 to 4	x4 to 6
TRY	Overlander + Expansion kit	Solar AE 4 or Solar AE-6		Overlander + Expansion kit	Solar AE 4 or Solar AE-6		Overlander Kit	Overlander + Expansion kit



CLASS B

TRAVEL TRAILER

POP-UP OR TRUCK CAMPER





	CLASS B			TRAVEL TRAILER			POP-UP OR TRUCK CAMPER
	1-3 DAYS AWAY	7+ DAYS AWAY		1-3 DAYS AWAY	7+ DAYS AWAY		1-3 DAYS AWAY	7+ DAYS AWAY
SOLAR	100 watts	300+ watts		150+ watts	300+ watts		100+ watts	200+ watts
INVERTER	2000 watt pure sine	2000 watt pure sine		2000 watt pure sine	2000 watt pure sine		2000 watt pure sine	2000 watt pure sine
BATTERIES	x2	x2 to 4		x2 to 4	x2 to 4		x1	x2 to 4
TRY	Retreat or Flex-100 kit	Retreat + 2x Retreat-E or Flex-200 kit + Flex-100E		Overlander Kit	Overlander + 1x Expansion kits		Retreat or Flex-100 Kit	Retreat +1 Expansion or Flex-100 kit + 1 Expansion





SOLAR SIZING CALCULATOR

How much power do you need? Consider how many days you’ll be off the grid and how much power you’ll use. Keep costs down by sizing for just what you need. Most Go Power! solar kits and systems are easily expandable as your power needs grow.



Step 1: Fill in the quantity of items and number of hours each appliance runs per day.



Step 2: Total Weekly Amps Calculation

Multiply total amp hours per day from Step 1 by the number of days of use per week.



Step 3: Solar Power Output

Match your power draw from Step 2 to the product listed below.
