Starlink: Product Specifications
Flat High Performance Kit
|
Dish |
Power Supply |
Power Supply Mount |
Router |
Router Mount |
|
Starlink Cable 8 m (26.2 ft) |
Ethernet Cable 5 m (16.5 ft) |
Router Cable 2 m (6.5 ft) |
AC Cable (Power Supply) 1.8 m (6 ft) |
AC Cable (Router) 1.8 m (6 ft) |

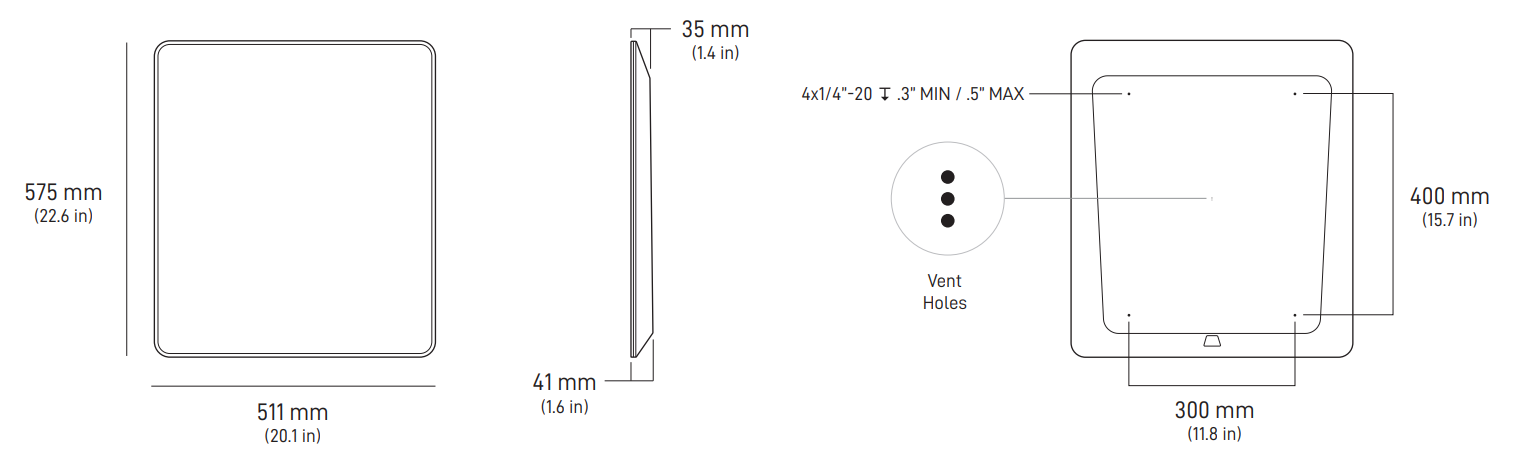

Flat High Performance
| Antenna | Electronic Phased Array |

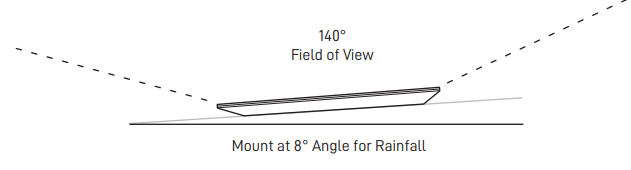

| Field of View | 140° |
| Orientation | Fixed |
| Dish Weight |
5.9 kg / 13 lbs without Cable 6.7 kg / 15 lbs with 8 m / 26.2 ft Cable |
| Environmental Rating | IP56 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Wind Speed | Survivable: 280 kph+ (174 mph+) |
| Snow Melt Capability | Up to 75 mm / hour (3 in / hour) |
| Power Consumption | Average: 110-150 W |
| Wi-Fi | Dual Band Wi-Fi 5 - 3x3 MIMO |
| User LAN | RJ45 Cable |
Wedge Mount
Router
| Wi-Fi Technology | 802.11ac Dual Band |
| Generation | Wi-Fi 5 |
| Radio | Dual Band -3 x 3 MIMO |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Weight | 1 kg (2.2 lbs) |
| Security | WPA2 |
| Range | Up to 185 m² (2000 ft²) *Varies on placement, interference, and materials |
| Environmental Rating | IP54 - Configured for Indoor Use |
| Power Indicator | White LED | Base of Router |
| Mesh Compatibility | Compatible with up to 12 Starlink Nodes |
| Devices | Connect up to 128 devices |
Router Mount
Power Supply Mount

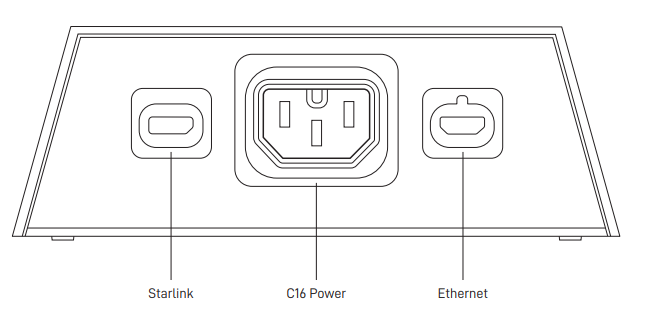

Power Supply Unit
| Environmental Rating | IP56 |
| Operating Temperature | -30°C to 50°C (-22 to 122°F) |
| Weight | 1.5kg (3lbs) |
| Grounding | Dedicated Earth Terminal |
| Power Specifications | 100-240V - 6.3A 50 - 60 Hz |
| Mounting | Included Wall Mount |

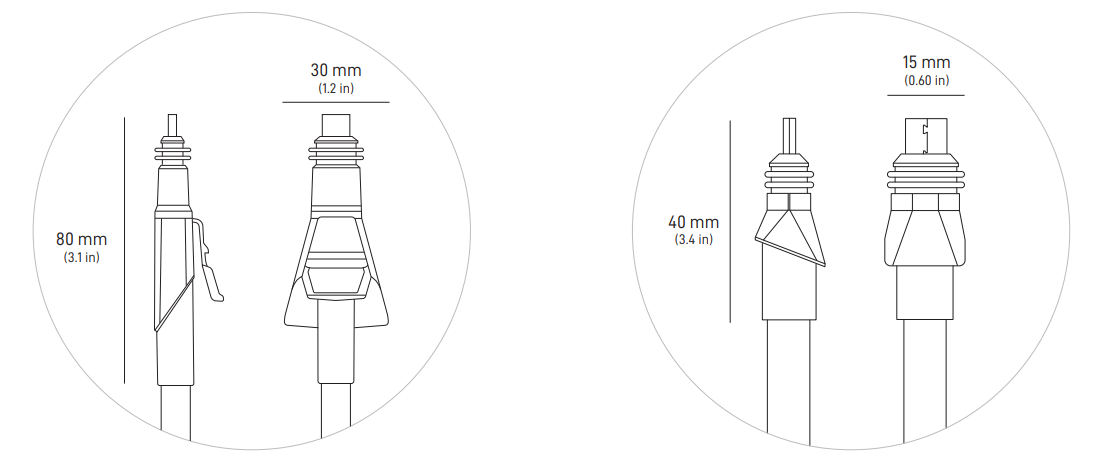

High Performance Starlink Cable
| End | Pin | Wire Color | Pin | End |
|
|
Dish |
A1 | Green | A1 |
Power Supply |
|
| A2 | Yellow | A2 | |||
| A3 | Blue | A3 | |||
| A4 | White | A4 | |||
| B1 | Orange | B1 | |||
| B2 | Purple | B2 | |||
| B3 | Brown | B3 | |||
| B4 | Gray | B4 | |||
| B5 | Shield/Shell | B5 |
High Performance Router Cable
| End | Pin | Ethernet Pin | Wire Color | Pin | End |
|
|
Wi-Fi |
A1,A2 | B+ | Orange White | A1,A2 |
Power Supply |
|
| A3,A4 | B- | Orange | A3,A4 | |||
| A5,A6 | A+ | Green White | A5,A6 | |||
| A7,A8 | A- | Green | A7,A8 | |||
| B1,B2 | -- | N/C | B1,B2 | |||
| B3,B4 | -- | N/C | B3,B4 | |||
| B5 | D+ | Brown White | B5 | |||
| B6 | D- | Brown | B6 | |||
| B7 | C- | Blue White | B7 | |||
| B8 | C+ | Blue | B8 | |||
| B9,B10 | -- | N/C | B9,B10 | |||
| B11,B12 | -- | N/C | B11,B12 | |||
| Shield Can | Drain Wire | Shell |
High Performance Ethernet Cable
PinEthernet PinWire ColorPin
| End | Pin | Ethernet Pin | Wire Color | Pin | End |
|
|
RJ45 |
A1,A2 | B+ | Orange White | A1,A2 |
Power Supply |
|
| A3,A4 | B- | Orange | A3,A4 | |||
| A5,A6 | A+ | Green White | A5,A6 | |||
| A7,A8 | A- | Green | A7,A8 | |||
| B1,B2 | -- | N/C | B1,B2 | |||
| B3,B4 | -- | N/C | B3,B4 | |||
| B5 | D+ | Brown White | B5 | |||
| B6 | D- | Brown | B6 | |||
| B7 | C- | Blue White | B7 | |||
| B8 | C+ | Blue | B8 | |||
| B9,B10 | -- | N/C | B9,B10 | |||
| B11,B12 | -- | N/C | B11,B12 | |||
| Shield Can | Drain Wire | Shell |
